KL Terminal Block

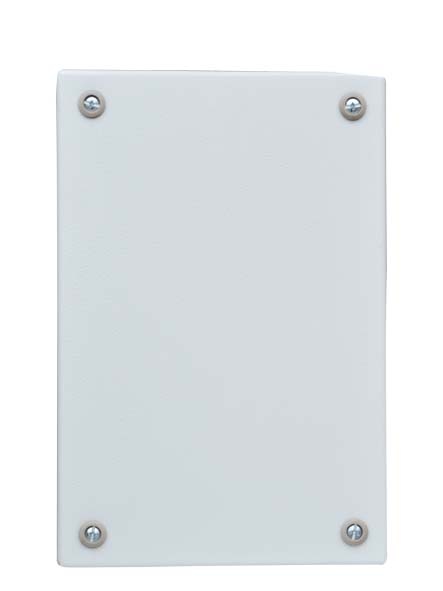

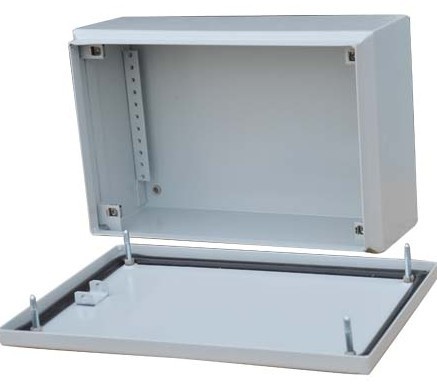

KL Hanging Terminal Block

Material: cold-roll steel sheets

Surface Finishing: the body and the front floor is dip coating primer, the outside is powder coating

Color:RAL7032 & RAL7035,weavy grain

Protection Grade:IP56 (According to GB4205-1993)

Standard configuration: case cover, cabinet, sealing strip, suite of link floor, screws for lid

Cabinet 1.2mm Lid 1.5mm

Manufacturer:Shanghai Xuan Mo Electrical Technology Co., Ltd.
Brand: Xuan Mo


 Features of produds：
1.The ground wire can be connected to the box body or the lid.
2.The holder stripe with screw holes on both sides in the cabinet can ensure the maximum installation height and also can install the slab like C shape and the mounting plate.
3.The body can be directly fixed on the wall by the holes and embossing in the back can and also can be fixed by using hook.
4.The cell is dipped coating primer. In order to achieve the best protection effect, all corners and edges are coated protective layer evenly.
5.The lid screws, quick locked fastening and cabinet retainer are installed by general standard without additional punch, so the protection grade is not affected.
6.The foam sealing strip has excellent seal performance, the closed cabinet can reach the protection level of IP56.
7.The special plastic insulation bush can prevent the lid screws from falling off and can play guidance role when the screws tightened.
8.The multi-layer fold protection slot can play a role in complementary reinforcement and also can prevent the dirt and water flowing into the box when open the lid.


KL/BKL series orders specifications

Serial numbers

Order Numbers

（RAL7032）

Order Numbers

（RAL7035）

Order Numbers

（304 Stainless Steel）

Order Numbers

（316 Stainless Steel）

W H D
1 KL1515807032
 KL1515807035 BKL151580304 BKL151580316 150 150 80
2 KL1515127032
 KL1515127035 BKL151512304 BKL151512316 150 150 120
3 KL2020807032 KL2020807035 BKL202080304 BKL202080316 200 200 80
4 KL2020127032 KL2020127035 BKL202012304 BKL202012316 200 200 120
5 KL3020807032 KL3020807035 BKL302080304 BKL302080316 300 200 80
6 KL3020127032 KL3020127035 BKL302012304 BKL302012316 300 200 120
7 AK3020217032 AK3020217035 BAK302021304 BAK302021316 300 200 210
8 AK3030127032 AK3030127035 BAK303012304 BAK303012316 300 300 120
*We are specialized in the customized non-standard products of different sizes, colors and materials and modified products based on KL/BKL structures.
