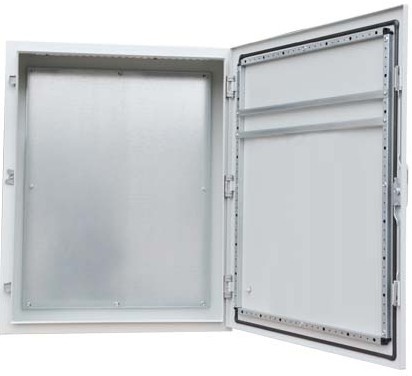

AK Luxury Vertical Control Box

AK Luxury Vertical Control Box
Material: cold-roll steel sheets

Surface Finishing: the body and the door sheet is dip coating primer, the outside is powder coating;

Color:RAL7032 and RAL7035

Protection Grade:IP56

Standard configuration: door sheet, cabinet, sealing strip, ground screw, mounting plate, floor and locks

Cabinet: 1.5-2.0mm door sheet: 2.0mm mounting plate: 2.5mm

Optional configuration: canopy, hanging pieces, base, door plank box, ground strip, documents pouch rings
Manufacturer:Shanghai Xuan Mo Electrical Technology Co., Ltd.
Brand: Xuan Mo

Features of products

1.The foam sealing strip has excellent seal performance, the closed cabinet can reach the protection level of IP56.
2.The mounting plate made of zinc coat steel sheet can be used as wiring outside the box.
3.The multi-layer fold protection slot can play a role in complementary reinforcement and also can prevent the dirt and water flowing into the box when open the lid.
4.The door made of steel sheet is equipped with Xuanmo hinge which can rotate in 130 degrees.
5.The box is dipped coating primer. In order to achieve the best protection effect, all corners and edges are coated protective layer evenly.
6.The ground wire can be connected to the box body or the door sheet.
7.The lock is Xuanmo fork lock.

AK/BAK series order specifications
