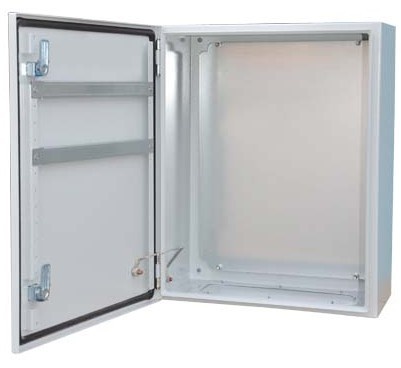

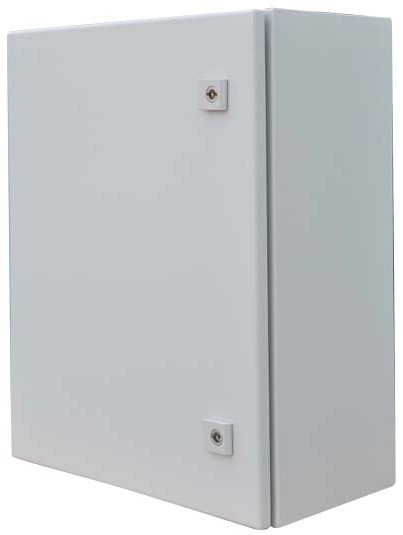

AE Hanging Control Box

AE Hanging Control Box

Material: cold-roll steel sheets

Surface Finishing: the body and front floor is dip coating primer, the outside is powder coating

Color:RAL7032 & RAL7035,weavy grain, mounting plate is zinc coat.

Protection Grade:IP56 (According to GB4205-1993)

Standard configuration: door sheet, cabinet, sealing strip, suite of link floor, mounting plate, floor and locks

Cabinet body：1.5mm   Door sheet：2.0mm   Mounting plate：2.5mm

Features of produds：

1.The foam sealing strip has excellent seal performance, the closed cabinet can reach the protection level of IP56.
2.The mounting plate made of zinc coat steel sheet can be used as wiring outside the box.
3.he multi-layer fold protection slot can play a role in complementary reinforcement and also can prevent the dirt and water flowing into the box when open the lid.
4.The door made of steel sheet is equipped with Xuanmo hinge which can rotate in 130 degrees.
5.The box is dipped coating primer. In order to achieve the best protection effect, all corners and edges are coated protective layer evenly.
6.The ground wire can be connected to the box body or the door sheet.
7.It is very convenient to open and close the light Xuanmo locks series.
8.The body can be directly fixed on the wall by the holes and embossing in the back can and also can be fixed by using hook.

AE/BAE series order specifications
