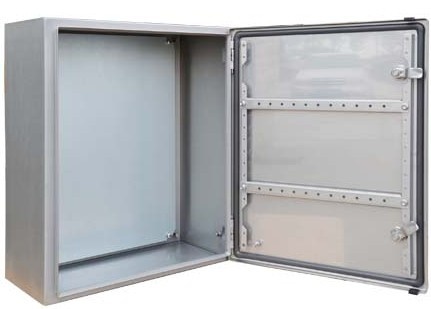

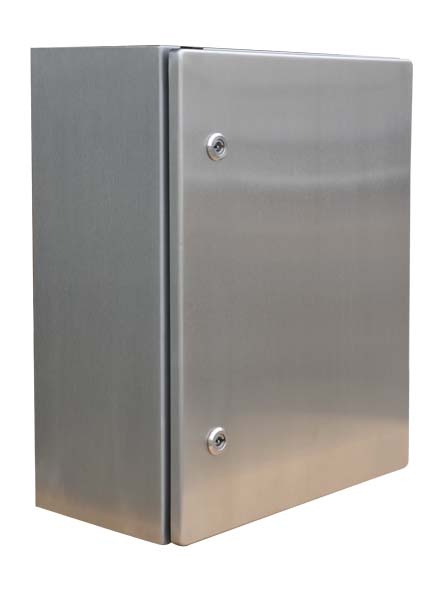

BAE Stainless Steel Control Box


BAE Control Box Series

Material: cabinet made of stainless steel 304

Protection Grade:IP56 IP66

Standard configuration: door sheet, cabinet, sealing strip, suite of link floor, mounting plate, floor and locks

coat door sheet 2.0mm Cabinet 1.5mm mounting plate 2.5mm

Manufacturer:Shanghai Xuan Mo Electrical Technology Co., Ltd.

Brand: Xuan Mo


Features of produds：
1.The foam sealing strip has excellent seal performance, the closed cabinet can reach the protection level of IP56.
2.The mounting plate made of zinc coat steel sheet can be used as wiring outside the box
3.The multi-layer fold protection slot can play a role in complementary reinforcement and also can prevent the dirt and water flowing into the box when open the lid.
4.The door made of steel sheet is equipped with Xuanmo hinge which can rotate in 130 degrees.
5.The ground wire can be connected to the box body or the door sheet.
6.It is very convenient to open and close the light Xuanmo locks series.
7.The body can be directly fixed on the wall by the holes and embossing in the back can and also can be fixed by using hook.



AE/BAE series orders specifications

Serial numbers

Order numbers

（RAL7032）

Order numbers

（RAL7035）

Order numbers

（304 Stainless Steel）

Order numbers

（316 Stainless Steel）

W H D
1 AE2030127032
 AE2030127035 BAE203012304 BAE203012316 200 300 120
2 AE2030217032
 AE3040217035 BAE304021304 BAE304021316 300 400 210
3 AE4050217032 AE4050217035 BAE405021304 BAE405021316 400 500 210
4 AE5060217032 AE5060217035 BAE506021304 BAE506021316 500 600 210
5 AE6060257032 AE6060257035 BAE606025304 BAE606025316 600 600 250
6 AE6080257032 AE6080257035 BAE601025304 BAE608025316 600 800 250
7 AE6010257032 AE6010257035 BAE601230304 BAE601025316 600 1000 250
8 AE6012307032 AE6012307035 BAE304012304 BAE601230316 600 1200 300
*We are specialized in the customized non-standard products of different sizes, colors and materials and modified products based on AE/BAE structures.
