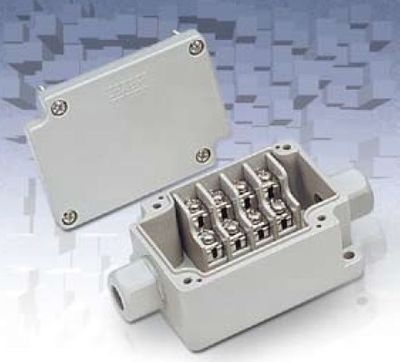

GA Terminal Block

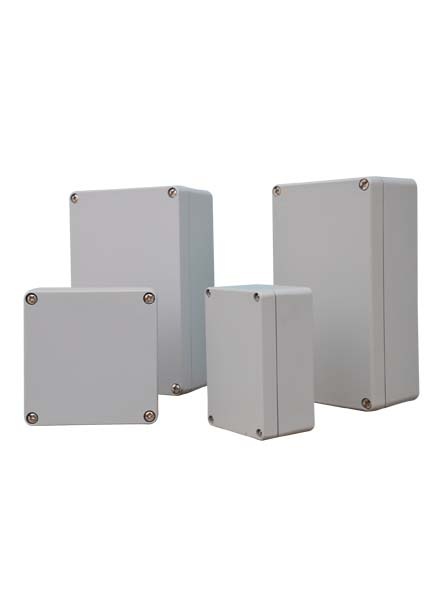

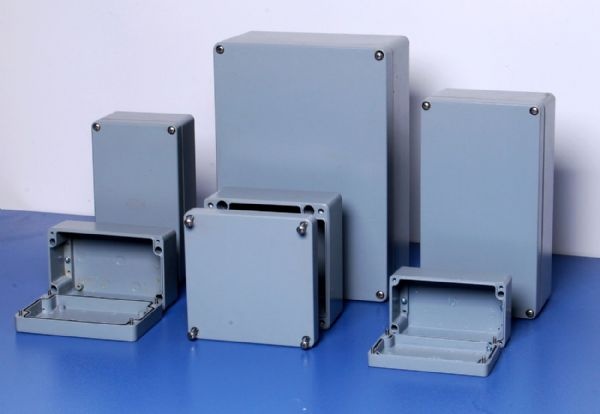

GA Aluminum Terminal Block
Material: aluminum die casting alloy AlSi12
The sealing strip is made of silicone rubber. We can provide special sealing strips.
Protection Grade:IP66
Acceptable temperature: -50℃to +130℃
The screws have stainless steel cross slot which can prevent it falling off easily.
The color is similar to RAL7001. We also can provide special colors to choose.
We offer processing services according to users’ requirements and install cable connectors and terminal blocks.
Company：Shanghai Xuanmo Electrical Technology Co.,Ltd

Brand：Xuan Mo


GA series orders specifications

Serial numbers Order numbers W H D Caliper length
1 GA121 94 64 36 ---
2 GA141
 75 80 57 115（TS15）
3 GA131
 125 80 57 64（TS15）
4 GA211
 122 120 80 240（TS15）
5 GA231
 220 140 80 109（TS35）
6 GA241
 220 120 90 147（TS35）
7 GA251
 200 230 110 207（TS35）
8 GA261
 260 160 90 207（TS35）
9 GA171
 250 80 57 185（TS35）
10 GA221
 160 160 90 245（TS35）
11 GA271
 320 230 90 306（TS35）
12 GA281
 280 230 110 265（TS35）
13 GA331
 330 230 110 315（TS35）
