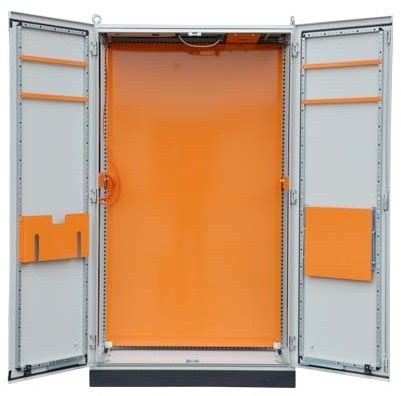

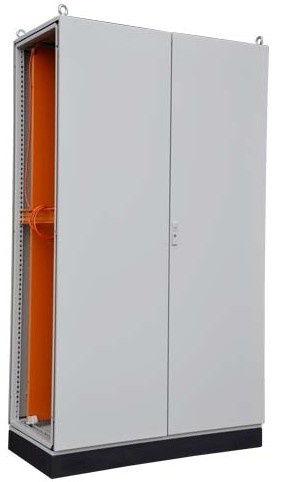

PS combined control cabinet

PS parallel control cabinet
Protection level：IP56；
Certificate：CE、ROHS、IP56；
Material：cold rolled steel sheet
Surface treatment: the enclosure is coated with primer, the exterior is powder coating, the color can be divided into two kinds of RAL7032 and RAL7035
Standard configuration: door, cabinet, sealing strip, grounding kit, mounting plate, door lock, back plate Frame: Nine fold profile door: 2.0mm mounting plate: 2.5mm back: 1.5mm
Steel plate thickness: 1.5mm, door panel 2.0mm, mounting plate 2.5mm

Manufacturer：Shanghai XuanMo Electrical Technology Co., Ltd.

Brand：XuanMo

Features of products ：

1.dark hinge, not prominent in the door frame and cabinet. Easy to install, take off the door is also convenient
2.box door is about 25mm
3.mounting plate can be used for plastic slide guide from the front into the box.
4.2.5mm thick installation plate on both sides, the mounting plate will be strong and easy to handle
5.cabinet dip primer, all corners and edges are evenly coated with protective layer, to achieve the best protection effect
6.the bottom is equipped with three liner plate, removable interchangeable use, easy processing and import cable
7.special rectangular frame can be fixed on the box door, the frame every 25mm has a screw hole, used to fix the cable, etc.
8.ground wire can be received from the box and door
9.may be removed from the roof, make work more convenient

10.on both sides of the door can be disassembled, convenient easy to work

PS/BPS series order specification
