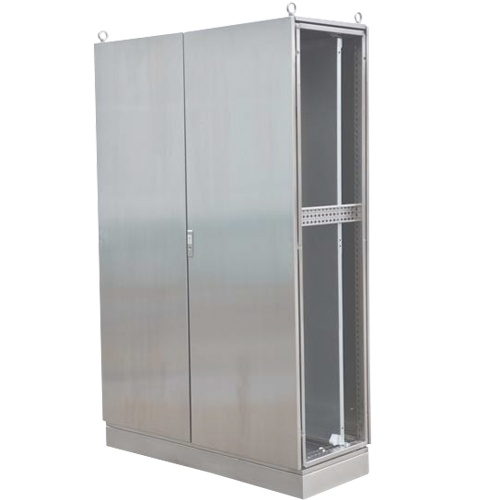

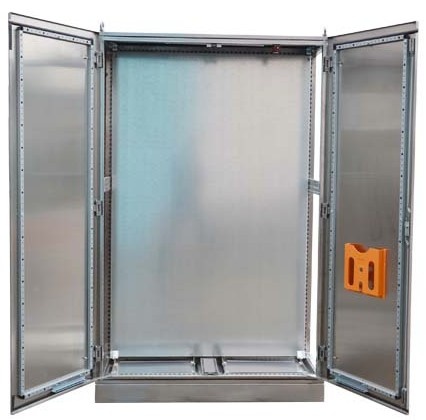

BPS Stainless Steel Control Box

BPS Stainless Steel Control Box
Protection Grade：IP56；
Certificate：CE、ROHS、IP56；
Material:304 stainless steel sheet
Surface Finishing: the body is dip coating primer, the outside is powder coating
Standard configuration: door sheet, cabinet, sealing strip, ground screw, mounting plate, floor and locks, backboard
Frame: nine fold steel sheets door sheet:2.0mm mounting plate:2.5mm backboard:1.5mm
Company: Shanghai Xuanmo Electrical Technology Co.,Ltd

Brand:Xuan Mo

Features of products ：

1.Blind hinge is easy to install and also convenient to take off in door plank which not inside the door frame and cabinet.
2.The door is high from the ground about 25mm.
3.The mounting plate can use plastic sliding guide device through the guide from the front into the box
4.The C type edgefold of both sides of the 2.5mm mounting plate makes it firmer and also convenient to move.
5.The bottom is equipped with three pieces of underboardings which are detachable and can replace each other. It is easy to import the cable and processing.
6.The special rectangular frame can be fixed on the door with the screws which has the screw hole every 25mm to attach the cable.
7.The ground wire can be connected to the box body or the door sheet.
8.The roof can be removed to make the work more convenient.
9.The both sides door sheets are detachable to make the work more convenient.

PS/BPS series orders specifications
