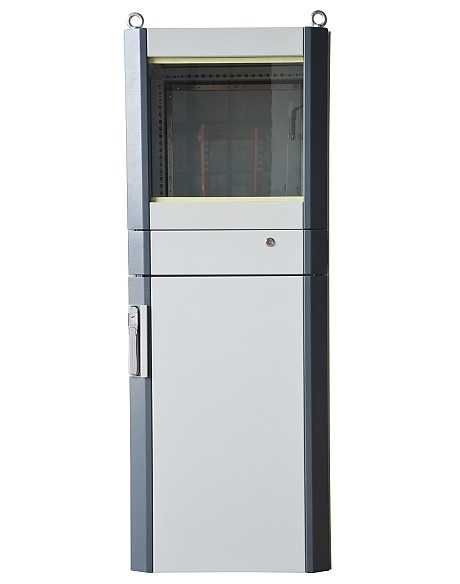

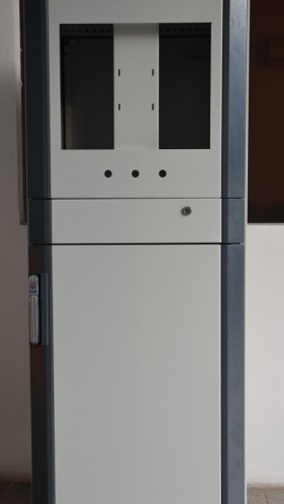

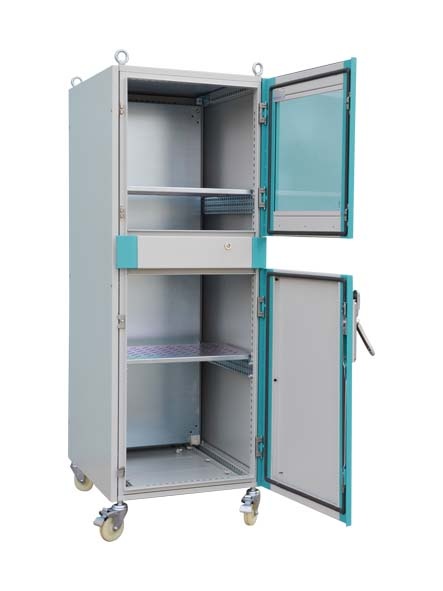

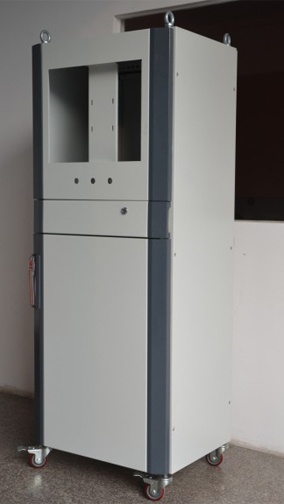

PC Industrial Computer Cabinet


PC Industrial Computer Cabinet
Material: cold-roll steel sheets
Surface Finishing: the body is dip coating primer, the outside is powder coating
Color:RAL7032 & RAL7035,weavy grain, mounting plate is zinc coat.
Protection Grade:IP56 (According to GB4205-1993)
Standard configuration: cabinet, sealing strip, ground screw, floor and locks, front top glass door, front bottom door sheet, keyboard drawer, fixed pallet
Cabinet:2.0mm door sheet:2.0mm mounting plate:2.5mm
Company: Shanghai Xuanmo Electrical Technology Co.,Ltd

Brand:Xuan Mo


Features of products ：

1.The monitor area is equipped with vaulted monolithic safety glass with no reflection.
2.The special rectangular frame can be fixed on the door with the screws which has the screw hole every 25mm to attach the cable.
3.The bottom door is equipped with Xuanmo 830 lock.

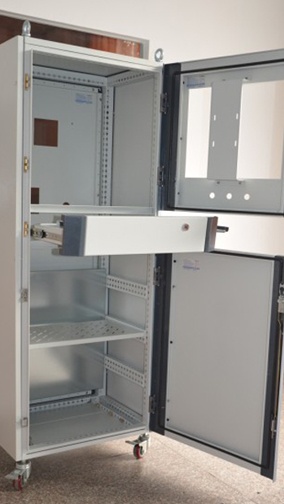

4.The keyboard drawer is folded with locks.
5.There are mouse pad in the folded keyboard pallet.
6.The ground wire can be connected to the box body or the door sheet.
7.The racks can be adjusted up and down.
8.The cabinet is dipped coating primer. In order to achieve the best protection effect, all corners and edges are coated protective layer evenly.

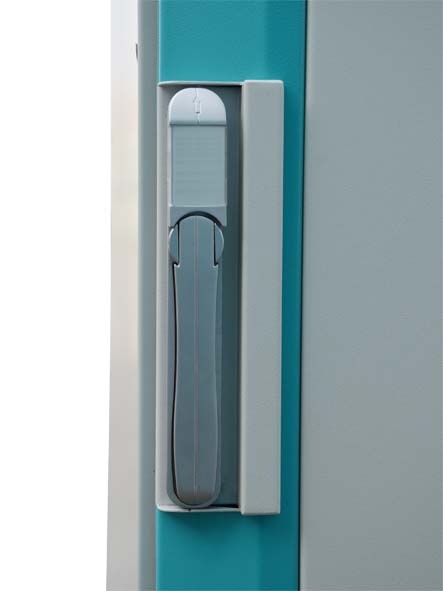

                   Rain lock                       Keyboard Drawer




PC/BPC series orders specifications

Serial numbers

Order numbers

（RAL7032）

Order numbers

（RAL7035）

Order numbers

（304 stainless steel）

Order numbers

（316 stainless steel）

W H D
1 PC6010807032
 PC6010807035 BPC601080304 BPC601080316 600 1000 800
2 PC6012607032
 PC6012607035 BPC601260304 BPC601260316 600 1200 600
3 PC6016607032 PC6016607035 BPC601660304 BPC601660316 600 1600 600
4 PC6016807032 PC6016807035 BPC601680304 BPC601680316 600 1600 800
5 PC8016607032 PC8016607035 BPC801680304 BPC801680316 800 1600 600
6 PC6018607032 PC6018607035 BPC601860304 BPC601860316 600 1800 600
7 PC6018807032 PC6018807035 BPC601880304 BPC601880316 600 1800 800
8 PC8018607032 PC8018607035 BPC801860304 BPC801860316 800 1800 600
*We are specialized in the customized non-standard products of different sizes, colors and materials and modified products based on PC/BPC structures
