Cantilever box body

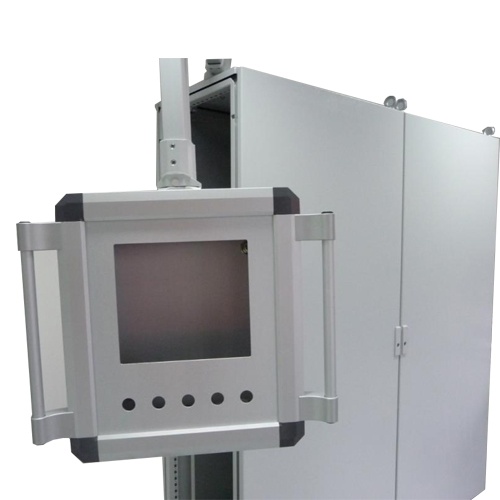

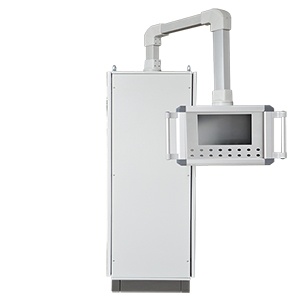

XM140/XM210 series cantilever control box
Material: made of high-quality aluminum die-casting parts anodized aluminum profiles and spliced angle
Structure: simple appearance, stable structure, strong applicability
Surface treatment: anodized aluminum is easier to clean, always keep the body bright

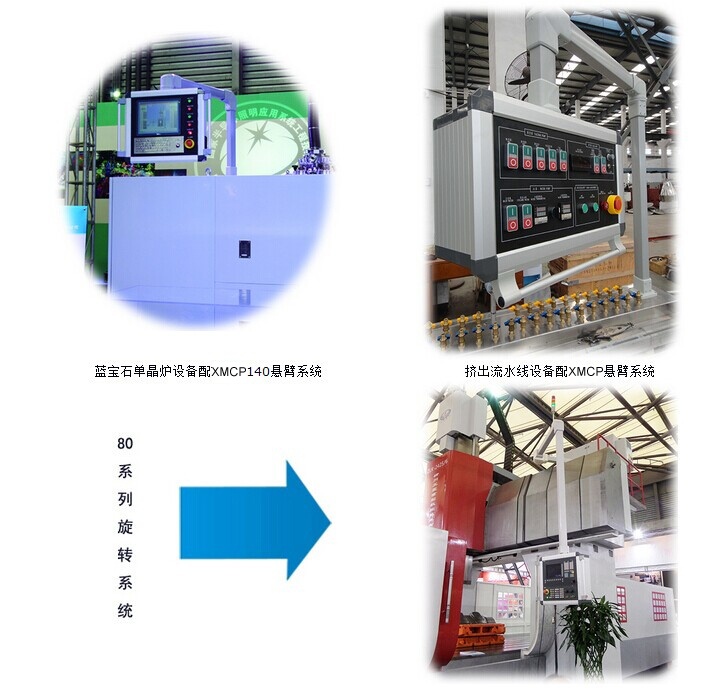

Application scope: This product is widely used in numerical control machine tools, assembly line and special equipment, all kinds of human machine interface and accessories, with the cantilever or support system, fully meet the requirements of the actual operation, the size of the box is fully customized
Basic performance and parameters：

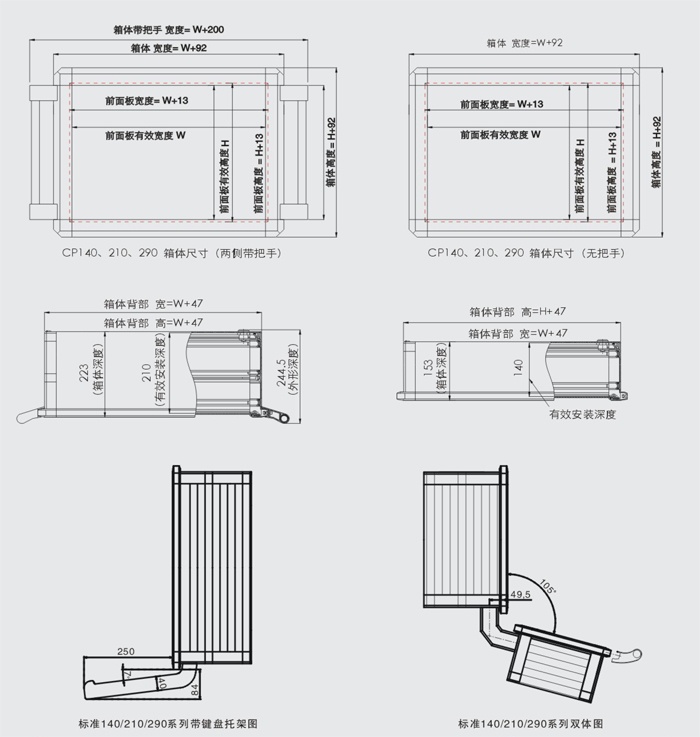

Effective installation depth：XM210：210mm、XM140：140mm
Custom maximum size：front panel width 700mm、front panel height 800mm
Box protection level: after open the door IP54, screw fixation IP65

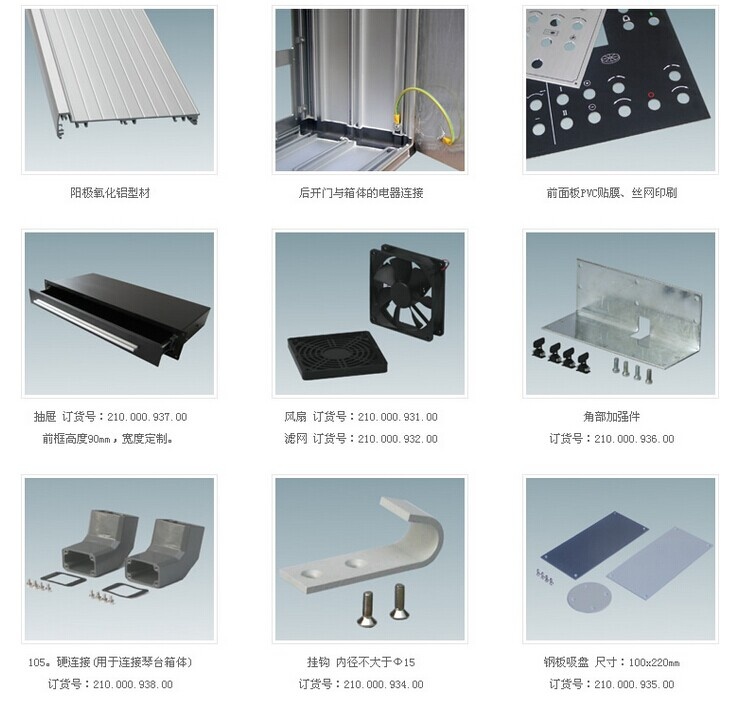

Box selection material:
Main body: aluminum profile
Handle: Aluminum Alloy 6063
Corner parts: die cast aluminum alloy 102
Handle fixation: PA glass fiber increase
Standard color box:
Aluminum profile and handle: anodic aluminum oxide
Corner parts: rock ash, approximate RAL7012
The back door (rear panel): spray, silver, anodized aluminum color drawing
Fixed part: gray

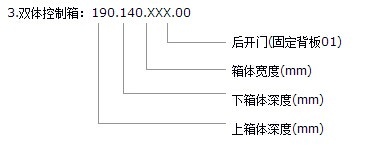

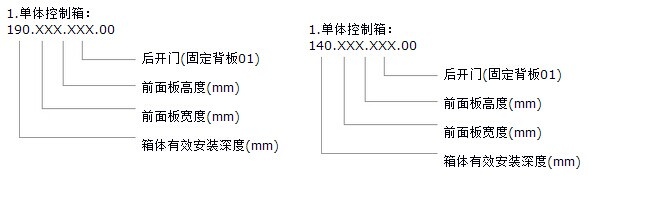

The control box the number of instructions
The control box the number of instructions

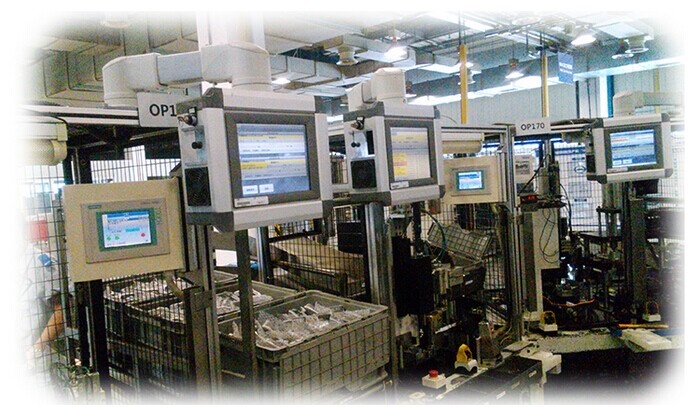

XMCP cantilever system for automobile spare parts production line
