Temperature controller

products details

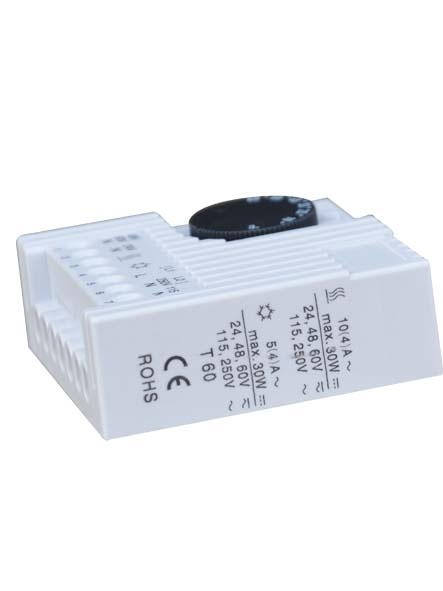

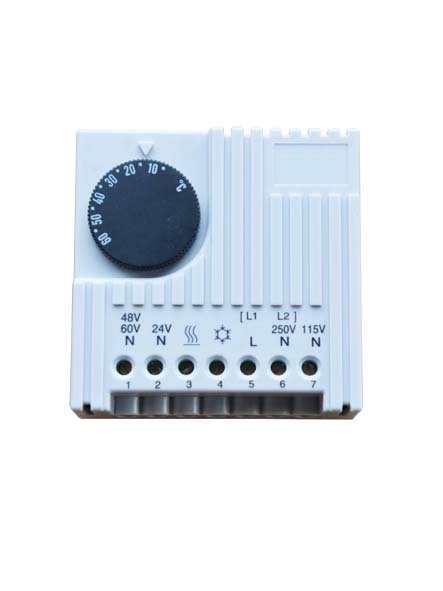

Temperature controller product description：
Product model：XMXK-1
The ink temperature controller is especially suitable for controlling the fan, heater, heat exchanger, as a signal generator
The temperature regulator is also applied to monitor the internal temperature of the control cabinet.

Product features:：
1.dual metal sensor as a thermal feedback of the thermal device, more sensitive temperature control
2.contact setting: the single pole switch contact (the change of the contact) as the instantaneous switching element
3.adjustment range: +5 to +60
4.the size of the product is 71*71*33.5mm
5.scientific design of the installation card slot, can be convenient and firm fixed in the control cabinet
6.double metal sensor as thermal feedback device
7.electric shock configuration: single pole conversion electric shock as the instantaneous switching element
8.allowable electric shock load：
  K1.5-3(heating） AC 10 (4) A, DC =30W
  K1.5-4(plus cold） AC 5 (4) A, DC =30W
9.adjustment range of +5 to +60
10.weight：105g
11.switch is about 1K plus or minus 0.8K
